下拉式过滤器

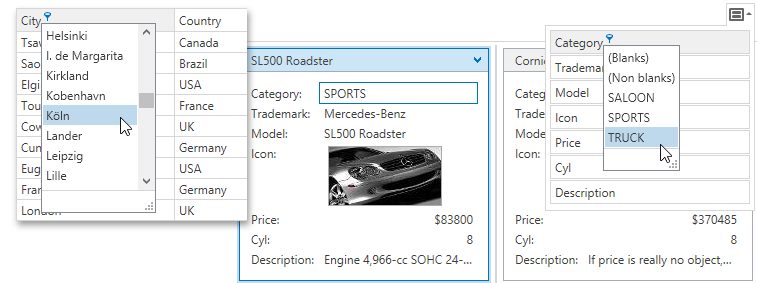

列的下拉式过滤器允许你在运行时过滤数据。下拉式过滤器显示列的唯一值。

要过滤一列的数据,终端用户应该点击列头的过滤按钮并选择任何项目。


本节主要为大家分享自定义过滤器的示例和方法,Excel式过滤时间下拉和常规和检查的下拉式过滤器请点击链接看官网教程。

自定义下拉式过滤器

如果你不想使用内置的下拉式过滤器,你可以自定义它或创建一个新的自定义下拉式过滤器。

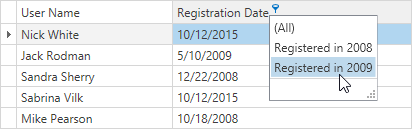

这个例子显示了如何用自定义项目替换Date列的下拉过滤项目。

(全部) - 取消过滤

  • 2008年注册 - 显示2008年注册的用户。
  • 2009年注册用户 - 显示2009年注册的用户。

<Window x:Class="DXGrid_CustomizingFilterDropdown.Window1"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:dxg="http://schemas.devexpress.com/winfx/2008/xaml/grid"
        Title="Window1" Height="300" Width="535">
    <Grid>

        <dxg:GridControl x:Name="grid" ItemsSource="{Binding AccountList}">
            <dxg:GridControl.Columns>
                <dxg:GridColumn FieldName="UserName"/>
                <dxg:GridColumn FieldName="RegistrationDate" FilterPopupMode="List"/>
            </dxg:GridControl.Columns>
            <dxg:GridControl.View>
                <dxg:TableView AutoWidth="True" ShowFilterPopup="TableView_ShowFilterPopup" />
            </dxg:GridControl.View>
        </dxg:GridControl>
    </Grid>
</Window>
using System;
using System.Collections.Generic;
using System.Windows;
using System.Windows.Documents;
using DevExpress.Data.Filtering;
using DevExpress.Xpf.Grid;

namespace DXGrid_CustomizingFilterDropdown {

    public partial class Window1 : Window {
        public Window1() {
            InitializeComponent();
            this.DataContext = new MyViewModel();

        }

        private void TableView_ShowFilterPopup(object sender, FilterPopupEventArgs e) {
            if (e.Column.FieldName != "RegistrationDate") return;
            List<object> filterItems = new List<object>();
            filterItems.Add(new CustomComboBoxItem()
            {
                DisplayValue = "(All)",
                EditValue = new CustomComboBoxItem()
            });
            filterItems.Add(new CustomComboBoxItem()
            {
                DisplayValue = "Registered in 2008",
                EditValue = CriteriaOperator.Parse(string.Format(
                "[RegistrationDate] >= #{0}# AND [RegistrationDate] < #{1}#",
                new DateTime(2008, 1, 1), new DateTime(2009, 1, 1)))
            });
            filterItems.Add(new CustomComboBoxItem()
            {
                DisplayValue = "Registered in 2009",
                EditValue = CriteriaOperator.Parse(string.Format(
                "[RegistrationDate] >= #{0}# AND [RegistrationDate] < #{1}#",
                new DateTime(2009, 1, 1), new DateTime(2010, 1, 1)))
            });
            e.ComboBoxEdit.ItemsSource = filterItems;
        }
    }

    public class MyViewModel {
        public MyViewModel() {
            AccountList = CreateAccounts();
        }

        public List<Account> AccountList { get; set; }


        private List<Account> CreateAccounts() {
            List<Account> list = new List<Account>();
            list.Add(new Account() {
                UserName = "Nick White",
                RegistrationDate = DateTime.Today
            });
            list.Add(new Account() {
                UserName = "Jack Rodman",
                RegistrationDate = new DateTime(2009, 5, 10)
            });
            list.Add(new Account() {
                UserName = "Sandra Sherry",
                RegistrationDate = new DateTime(2008, 12, 22)
            });
            list.Add(new Account() {
                UserName = "Sabrina Vilk",
                RegistrationDate = DateTime.Today
            });
            list.Add(new Account() {
                UserName = "Mike Pearson",
                RegistrationDate = new DateTime(2008, 10, 18)
            });
            return list;
        }
    }
    public class Account {
        public string UserName { get; set; }
        public DateTime RegistrationDate { get; set; }
    }
}
如何创建一个自定义下拉式过滤器
要创建一个自定义的下拉式过滤器:
  • 将ColumnBase.FilterPopupMode属性设置为FilterPopupMode.Custom / FilterPopupMode.ExcelSmart。
  • 创建一个表示下拉式过滤器的模板,并将其分配给ColumnBase.CustomColumnFilterPopupTemplate属性(见示例1)。
你可以定义一个以PART_FilterElement为名的过滤器元素作为自定义数据模板(见例2)。
示例1

下面的代码示例演示了如何为Index列创建一个自定义的下拉式过滤器。


<Window x:Class="DXGrid_CustomFilterPopup.Window1"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:dxg="http://schemas.devexpress.com/winfx/2008/xaml/grid"
    xmlns:local="clr-namespace:DXGrid_CustomFilterPopup"
    Title="Window1" Height="300" Width="423">

    <Grid>
        <dxg:GridControl x:Name="grid">
            <dxg:GridControl.Columns>
                <dxg:GridColumn FieldName="Index" FilterPopupMode="Custom">
                    <dxg:GridColumn.CustomColumnFilterPopupTemplate>
                        <DataTemplate>
                            <StackPanel>
                            <Label Content="Minimum Index:" Margin="3" />
                            <Slider Minimum="1" Maximum="99" Width="200" Margin="3"
                                    Value="{Binding Path=CustomColumnFilter, RelativeSource={RelativeSource TemplatedParent},
                                            Converter={local:IntToCriteriaOperatorConverter}}" />
                            </StackPanel>
                        </DataTemplate>
                    </dxg:GridColumn.CustomColumnFilterPopupTemplate>
                </dxg:GridColumn>
            </dxg:GridControl.Columns>
            <dxg:GridControl.View>
                <dxg:TableView AutoWidth="True" />
            </dxg:GridControl.View>
        </dxg:GridControl>
    </Grid>
</Window>
using System;
using System.Collections.Generic;
using System.Windows;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Markup;
using DevExpress.Data.Filtering;

namespace DXGrid_CustomFilterPopup {
    public partial class Window1 : Window {
        public Window1() {
            InitializeComponent();
            grid.ItemsSource = GridData.GetData();
        }
    }
    public class GridData {
        static public List<DataObject>  GetData() {
            List<DataObject> data = new List<DataObject>();
            for (int i = 0; i < 100; i++)
                data.Add(new DataObject() { Index = i });
            return data;
        }
    }
    public class DataObject {
        public int Index { get; set; }
    }
    public class IntToCriteriaOperatorConverter : MarkupExtension, IValueConverter {
        public override object ProvideValue(IServiceProvider serviceProvider) {
            return this;
        }
        #region IValueConverter Members
        object IValueConverter.Convert(object value, Type targetType,
                object parameter, System.Globalization.CultureInfo culture) {
            BinaryOperator op = value as BinaryOperator;
            if (object.ReferenceEquals(op, null))
                return null;
            OperandValue operandValue = op.RightOperand as OperandValue;
            return operandValue.Value;
        }
        object IValueConverter.ConvertBack(object value, Type targetType,
                object parameter, System.Globalization.CultureInfo culture) {
            return new BinaryOperator("Index", Convert.ToInt32(value), BinaryOperatorType.Greater);
        }
        #endregion
    }
}
示例2

以下代码示例使用RangeFilterElement作为自定义数据模板。


<dxg:GridControl x:Name="grid" ItemsSource="...">
    <dxg:GridControl.Columns>
        <!-- -->
        <dxg:GridColumn FieldName="Quantity">
            <dxg:GridColumn.CustomColumnFilterPopupTemplate>
                <DataTemplate>
                    <dxfui:RangeFilterElement x:Name="PART_FilterElement"/>
                </DataTemplate>
            </dxg:GridColumn.CustomColumnFilterPopupTemplate>
        </dxg:GridColumn>
        <!-- -->
    </dxg:GridControl.Columns>
    <dxg:GridControl.View>
        <dxg:TableView ColumnFilterPopupMode="ExcelSmart" />
    </dxg:GridControl.View>
</dxg:GridControl>
