VS2005已经发布好久了，但对  DataGridView  的使用,在网上的资料还比较少,DataGridView  无论是美观与功能方面都是  DataGrid  所不能比的,应该说  DataGridView  不是  DataGrid  的升级,因为  DataGridView  使用了一套全新的构建方式,引入了DataGridViewCell ,DataGridViewColumn,DataGridViewRow,等,新的概念,也使编程更容易了,它提供了  DataGridViewTextBoxColumn,DataGridViewImageColumn,DataGridLinkColumn,DataGridViewComboBoxColumn,DataGrid ViewButtonColumn,DataGridViewCheckBoxColumn,等样式列
但我们常用的远不只这些样式列,所以我不想把所有的样式列都给大家做出来,我只是想抛砖引玉通过我自己做的四个样式列来让大家掌握自定义  DataGridView  样式列的方法．由于时间仓促功能不是很完善，望大家见谅，好了大家先看看4个控件的效果．

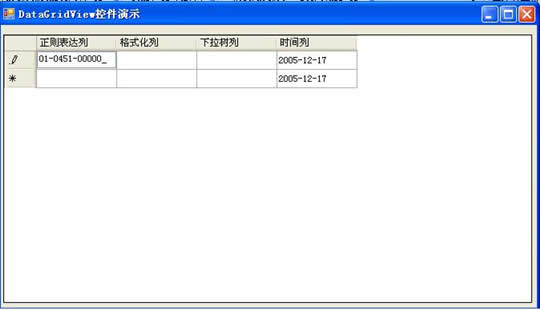

一：DataGridViewMaskedTextBoxColumn(正则表达式样式列)

using System;

using System.Collections.Generic;

using System.ComponentModel;

using System.Drawing;

using System.Data;

using System.Text;

using System.Windows.Forms;

using System.Drawing.Design;

namespace WindowsApplication23

{

    //Cell编辑类，实现IDataGridViewEditingControl接口,可参照ComboBoxEditingControl的写法

    public class DataGridViewMaskedTextBoxEditingControl:MaskedTextBox,IDataGridViewEditingControl

    {

        protected int rowIndex;

        protected DataGridView dataGridView;

        protected bool valueChanged = false;

        public DataGridViewMaskedTextBoxEditingControl()

        {

            base.TabStop = false;

        }

        //重写基类(MakedTextBox)的OnTextChanged方法

        protected override void OnTextChanged(EventArgs e)

        {

            base.OnTextChanged(e);

            NotifyDataGridViewOfValueChange();

        }

        //  当text值发生变化时，通知DataGridView

        private void NotifyDataGridViewOfValueChange()

        {

            valueChanged = true;

            dataGridView.NotifyCurrentCellDirty(true);

        }

        /**//// <summary>

        /// 设置对齐方式

        /// </summary>

        /// <param name="align"></param>

        /// <returns></returns>

        private static HorizontalAlignment translateAlignment(DataGridViewContentAlignment align)

        {

            switch (align)

            {

                case DataGridViewContentAlignment.TopLeft:

                case DataGridViewContentAlignment.MiddleLeft:

                case DataGridViewContentAlignment.BottomLeft:

                    return HorizontalAlignment.Left;

                case DataGridViewContentAlignment.TopCenter:

                case DataGridViewContentAlignment.MiddleCenter:

                case DataGridViewContentAlignment.BottomCenter:

                    return HorizontalAlignment.Center;

                case DataGridViewContentAlignment.TopRight:

                case DataGridViewContentAlignment.MiddleRight:

                case DataGridViewContentAlignment.BottomRight:

                    return HorizontalAlignment.Right;

            }

             return HorizontalAlignment.Left;

        }

        /**//// <summary>

        /// 在Cell被编辑的时候光标显示

        /// </summary>

        public Cursor EditingPanelCursor

        {

            get

            {

                return Cursors.IBeam;

            }

        }

        /**//// <summary>

        /// 获取或设置所在的DataGridView

        /// </summary>

        public DataGridView EditingControlDataGridView

        {

            get

            {

                return dataGridView;

            }

            set

            {

                dataGridView = value;

            }

        }

        /**//// <summary>

        /// 获取或设置格式化后的值

        /// </summary>

        public object EditingControlFormattedValue

        {

            set

            {

                Text = value.ToString();

                NotifyDataGridViewOfValueChange();

            }

            get

            {

                return this.Text;

            }

        }

        /**//// <summary>

        /// 获取控件的Text值

        /// </summary>

        /// <param name="context">错误上下文</param>

        /// <returns></returns>

        public virtual object GetEditingControlFormattedValue(DataGridViewDataErrorContexts context)

        {

            return Text;

        }

        /**//// <summary>

        /// 编辑键盘

        /// </summary>

        /// <param name="keyData"></param>

        /// <param name="dataGridViewWantsInputKey"></param>

        /// <returns></returns>

        public bool EditingControlWantsInputKey(Keys keyData, bool dataGridViewWantsInputKey)

        {

            switch (keyData & Keys.KeyCode)

            {

                case Keys.Right:

                    if (!(this.SelectionLength == 0

                          && this.SelectionStart == this.ToString().Length))

                    {

                        return true;

                    }

                    break;

                case Keys.Left:

                    if (!(this.SelectionLength == 0

                          && this.SelectionStart == 0))

                    {

                        return true;

                    }

                    break;

                case Keys.Home:

                case Keys.End:

                    if (this.SelectionLength != this.ToString().Length)

                    {

                        return true;

                    }

                    break;

                case Keys.Prior:

                case Keys.Next:

                    if (this.valueChanged)

                    {

                        return true;

                    }

                    break;

                case Keys.Delete:

                    if (this.SelectionLength > 0 || this.SelectionStart < this.ToString().Length)

                    {

                        return true;

                    }

                    break;

            }

            return !dataGridViewWantsInputKey;

        }

        public void PrepareEditingControlForEdit(bool selectAll)

        {

            if (selectAll)

            {

                SelectAll();

            }

            else

            {

                this.SelectionStart = this.ToString().Length;

            }

        }

        public virtual bool RepositionEditingControlOnValueChange

        {

            get

            {

                return false;

            }

        }

        /**//// <summary>

        /// 控件所在行

        /// </summary>

        public int EditingControlRowIndex

        {

            get

            {

                return this.rowIndex;

            }

            set

            {

                this.rowIndex = value;

            }

        }

        /**//// <summary>

        /// 设置样式

        /// </summary>

        /// <param name="dataGridViewCellStyle"></param>

        public void ApplyCellStyleToEditingControl(DataGridViewCellStyle dataGridViewCellStyle)

        {

            this.Font = dataGridViewCellStyle.Font;

            this.ForeColor = dataGridViewCellStyle.ForeColor;

            this.BackColor = dataGridViewCellStyle.BackColor;

            this.TextAlign = translateAlignment(dataGridViewCellStyle.Alignment);

        }

        /**//// <summary>

        /// 是否值发生了变化

        /// </summary>

        public bool EditingControlValueChanged

        {

            get

            {

                return valueChanged;

            }

            set

            {

                this.valueChanged = value;

            }

        }

    }

}

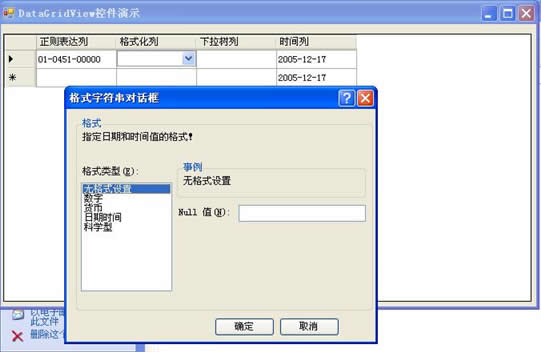

(二)DataGridViewFormat(可以获取格式的列，如N2 ,1234,11)

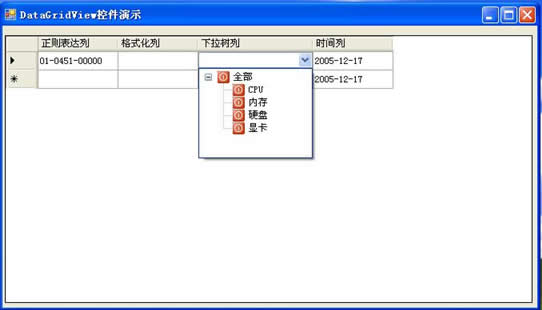

(三)DataGridViewTreeViewColumn(下拉列表树控件 )

(四)DataGridViewDateTimeColumn(日期选择列控件)
